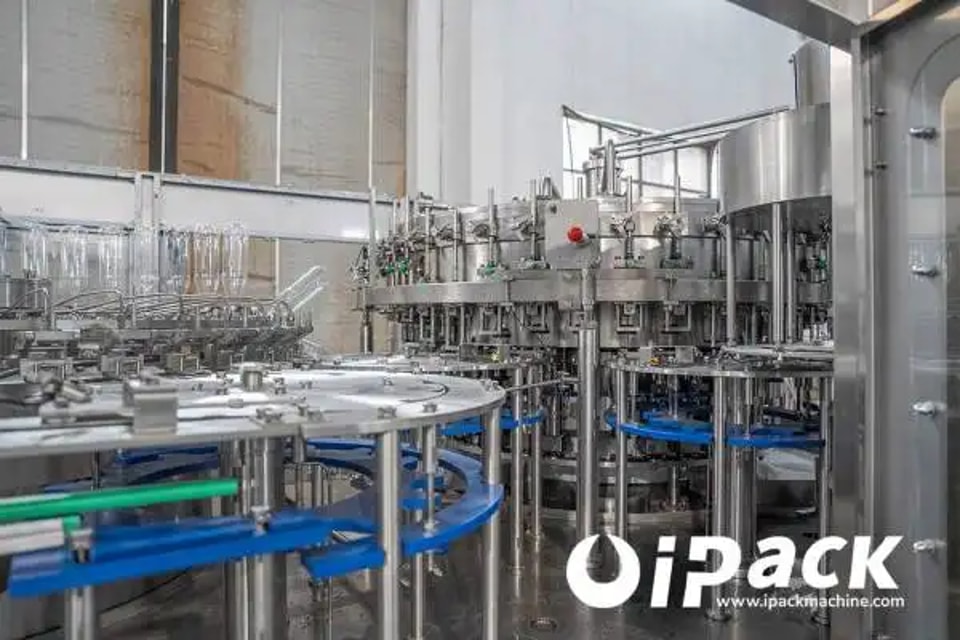

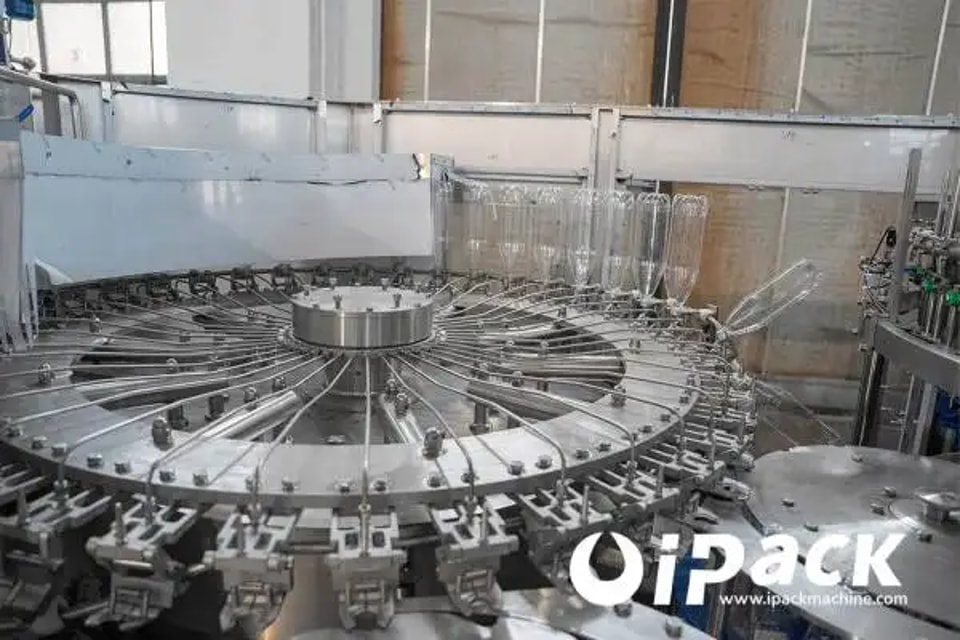

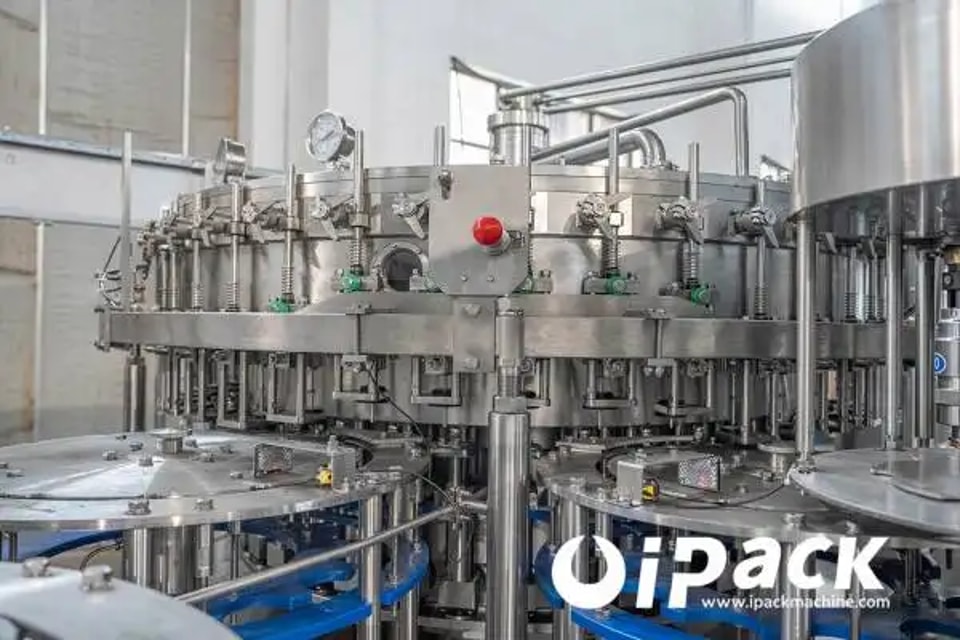

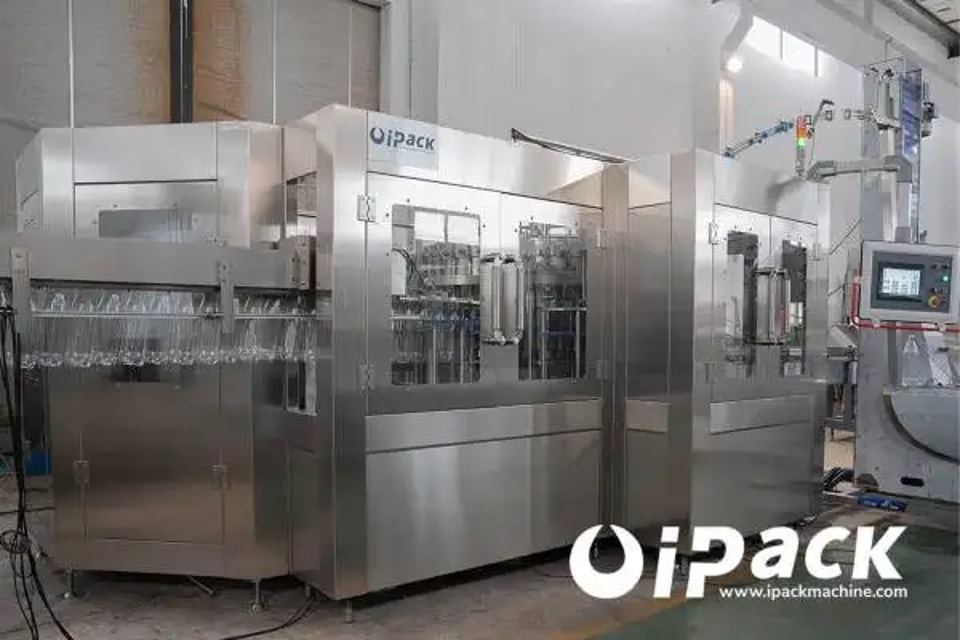

12000BPH 3 in 1 Carbonated Soft Drink Filling Machine
- Model: DXFG40-40-10
- Capacity: 10000~12000 Bottles Per Hour
- Bottle Sizes: 250ml ~2L
- Function :Washing Filling Capping Machine
Description
This Machine mainly used in the Carbonated beverage filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology. The famous brand programeed controller (PLC) is adopted to control the machine runs automatically. It is a ideal perferred equipment for beverage makers.
Technical Parameter
| Model | DXGF40-40-10 |
|---|---|
| Capacity: (500ML) | 10000~12000 bottles/hour |
| Suitable bottle shapes | PET Circular or Square |
| Bottle diameter | 50~115mm |
| Bottle height | 120~320mm |
| Compressor air | 0.3~0.7Mpa |
| Washing medium | Pure Water |
| Filling type | Isobaric filling |
| Application | Carbonated drink / Sparkling water |
| Main motor power | 5.5kW |
| Overall dimensions | 4350*3300*2700mm |
| Weight | 9500kg |
