Complete Beer Production Line for Glass Bottle Filling Plant
From beer processing, rinsing, filling and capping to cold glue labeling, film packaging and carton box packing, we provide complete beer production line solutions for brewery projects.
Complete Beer Production Line Solution
We supply complete solutions for beer production lines, including beer filling machines with rinsing, filling and capping 3-in-1 system, beer cold glue labeling system, beer film packaging machine and carton box packing machine. We can also supply beer processing systems, such as saccharification system, filtration system, fermentation system and storage system.
Beer Production Line Data Information
Choose a suitable beer production line model according to your required glass bottle filling capacity, bottle size, labeling method, packaging format, automation level and brewery layout.
| Model | BXGF14-12-5 | BXGF18-18-6 | BXGF24-24-8 | BXGF32-32-10 | BXGF40-40-10 |
|---|---|---|---|---|---|
| Capacity (500ml/bottle/h) | 1000-2000 | 2000-3000 | 3000-5000 | 5000-8000 | 8000-10000 |
| Suitable Bottle | Glass Bottle | Glass Bottle | Glass Bottle | Glass Bottle | Glass Bottle |
| Bottle Diameter | φ49—φ90mm | φ49—φ90mm | φ49—φ90mm | φ49—φ90mm | φ49—φ90mm |
| Bottle Height | 160-290mm | 160-290mm | 160-290mm | 160-290mm | 160-290mm |
| Rated Power | 4.5KW | 4.8KW | 5.5KW | 7.5KW | 8.5KW |
| Overall Size | 2400*1880*2000mm | 2800*2200*2300mm | 3050*2400*2300mm | 3800*2600*2500mm | 4000*3150*2500mm |
| Weight | 3800kgs | 5200kgs | 7400kgs | 8400kgs | 9200kgs |
The above data is for reference only. Final configuration depends on beer type, bottle size, filling capacity, labeling method, packaging format, brewery layout and automation level.

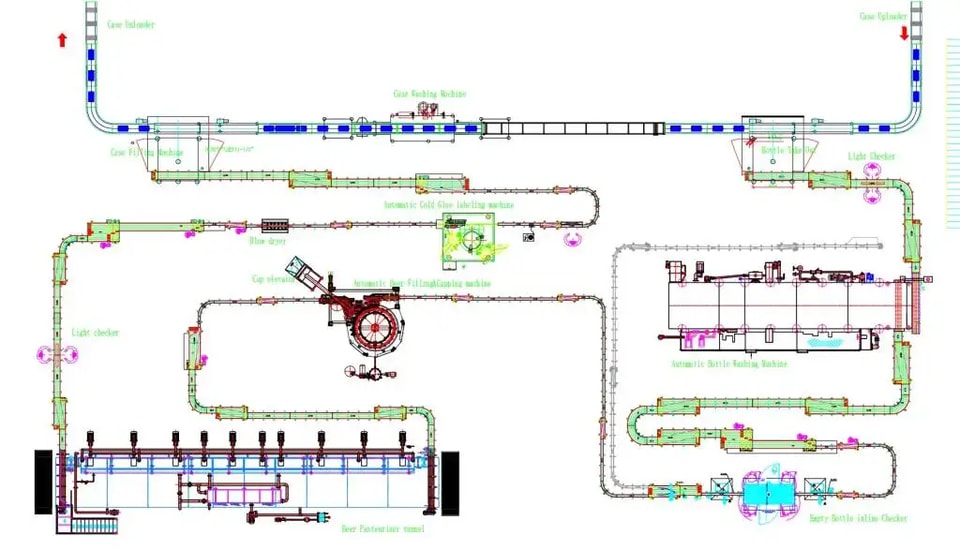

Typical Beer Production Line Layout
This layout shows a typical beer production line arrangement, including beer processing system, bottle rinsing, filling and capping, cold glue labeling, film packaging, carton box packing and conveying system. The final layout can be customized according to brewery capacity, bottle size, factory space and packaging requirements.
Key Equipment of the Complete Beer Production Line

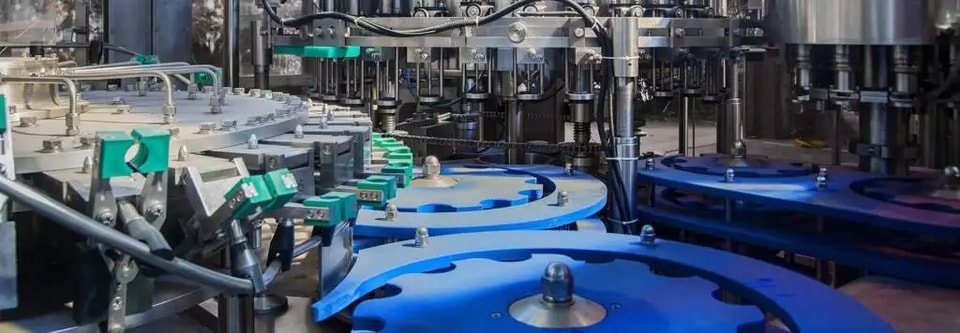

Filling
This beer filling machine is my company’s introduction of german technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

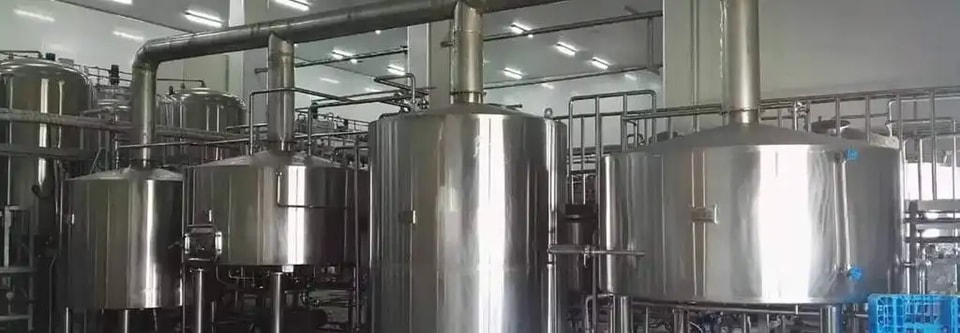

Beer Brewing
Beer brewing equipment designed for the ever-evolving craft brewer. Built for great beer! Between brewhouses, fermenters, brite tanks and more, Alps has the experience and know how to design and install the beer brewing equipment for breweries of any size. Whether you need a turnkey brewing system or individual pieces of equipment for handling raw materials, brewing or packaging.

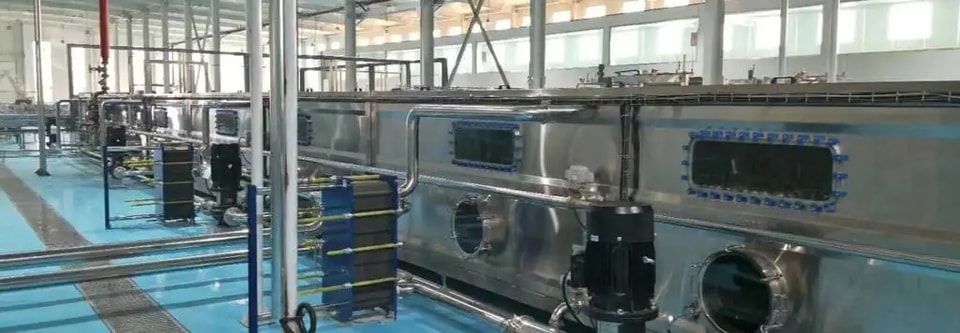

Pasteurization Tunnel
With various zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine are specially designed for the pasteurizer tunnel, can be used for the carbonated drink, juice, beer, food product.

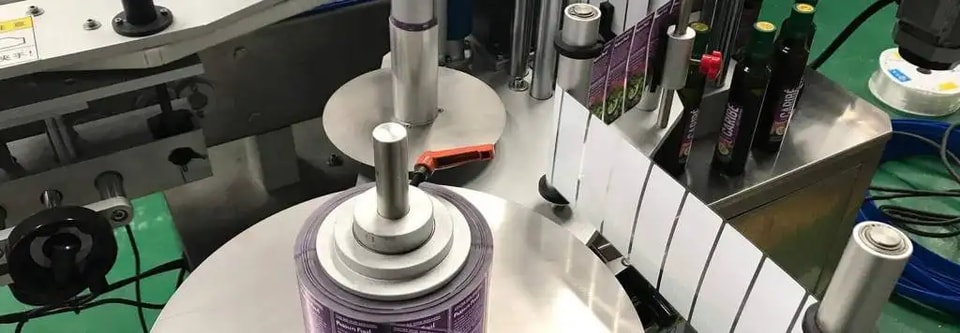

Labeling
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, adhesive stick label, wet glue label.
Packing
As customer request and market demand, we provide the better solution for the final product package.
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, adhesive stick label, wet glue label, and packing machine have the film shrink machine and carton box package.

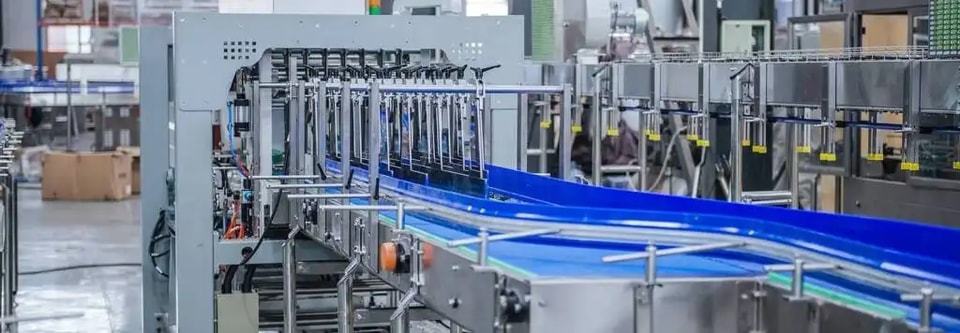

Conveyor
We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.
Need a Customized Beer Production Line?
Tell us your beer type, glass bottle size, required capacity, labeling method, packaging format and factory layout. Our engineering team will provide a suitable beer production line solution for your brewery project.
