Complete Edible Oil Production Line for Bottle Filling Plant
From bottle feeding, edible oil filling and capping to labeling, packing and conveying, we provide complete bottle liquid filling line solutions for edible oil, grease and other viscous liquid products.
Complete Bottle Liquid Filling Line Solution
The bottle liquid filling line is a high-tech product designed and developed by our company. It is suitable for different viscosity products, including water agent, semi-fluid and paste. It is widely used for product filling in foodstuff, cosmetics, medicine, grease, daily chemical, detergent, pesticide and chemical industries.
Edible Oil Production Line Data Information
Choose a suitable filling line model according to your bottle volume, liquid viscosity, required capacity, filling heads, capping method, labeling format and plant layout.
| Filling Heads | 4 | 6 | 8 | 10 | 12 | 16 |
|---|---|---|---|---|---|---|
| Capacity (1L/bottle/h) | 600-1200 | 1000-1600 | 1600-2200 | 2200-2800 | 2800-3200 | 3200-4000 |
| Bottle Volume | 500ml-5L | 500ml-5L | 500ml-5L | 500ml-3L | 500ml-2.5L | 500ml-1L |
| Air Pressure | 0.55-0.8Mpa | 0.55-0.8Mpa | 0.55-0.8Mpa | 0.55-0.8Mpa | 0.55-0.8Mpa | 0.55-0.8Mpa |
| Air Consumption | 0.8m³/min | 1m³/min | 1.2m³/min | 1.4m³/min | 1.6m³/min | 1.8m³/min |
| Rated Power | 1KW | 1.2KW | 1.4KW | 1.6KW | 1.8KW | 2KW |
The above data is for reference only. Final configuration depends on product viscosity, bottle volume, filling heads, required capacity, capping method, labeling format and automation level.

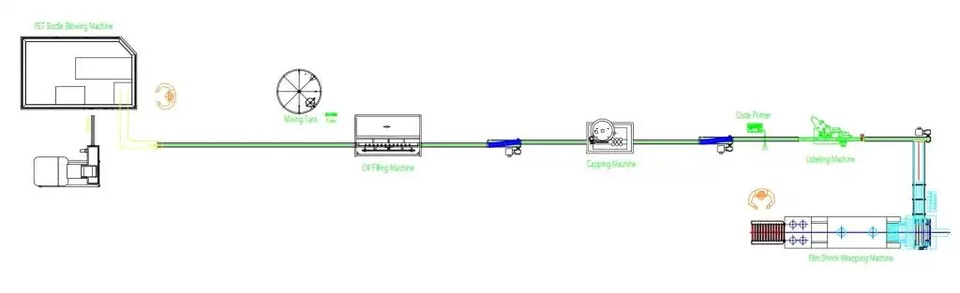

Typical Edible Oil Production Line Layout
This layout shows a typical edible oil bottle filling line arrangement, including bottle feeding, liquid filling, capping, labeling, packing and conveying system. The final layout can be customized according to bottle volume, product viscosity, production capacity, factory space and automation requirements.
Key Equipment of the Complete Edible Oil Production Line

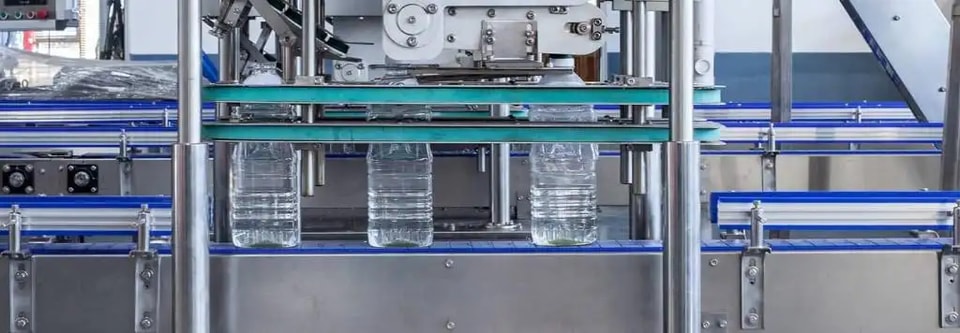

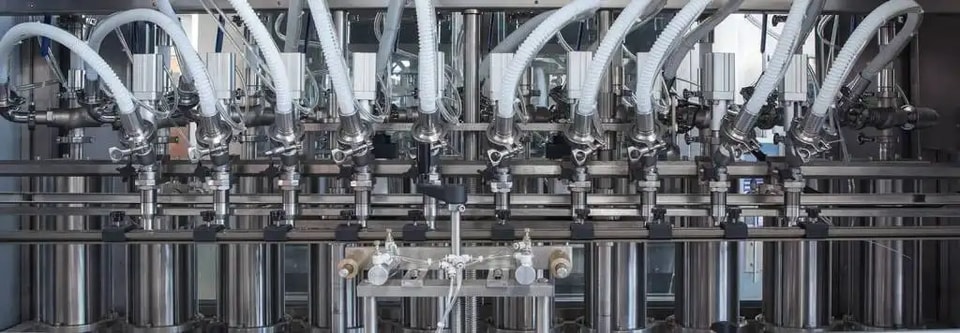

Filling
The machine is suitable for filling and sealing beverage or brewage industry, it have such features as rapid filling and sealing speed, consistent height from the liquid level in the can to the can mouth after filling, stable machine operation ,good sealing quality, beautiful and decent appearance, convenient use and maintenance, touch screen operation, frequency conversion speed adjustment, etc. It is the most ideal filling and sealing device for beverage plants and brew houses.

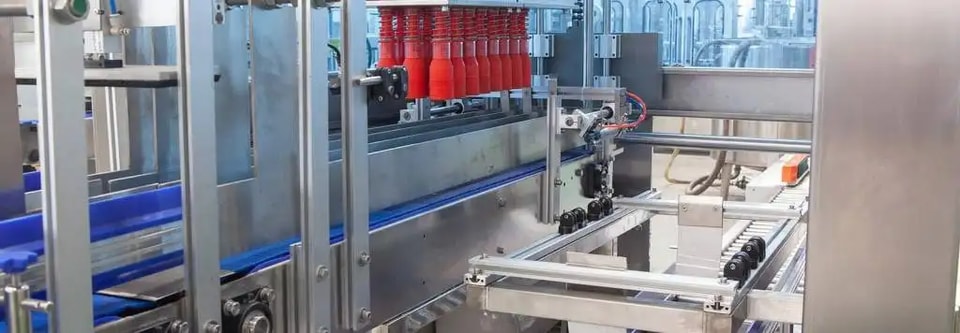

Capping
Automatic vertical lid presser is a newly-type lid-revolver improved by our company. The machine’s appearance is artistic and scholar, flexible, quick lid-revolving speed, high conformity rate, it may suit for the different bottle shape’s lid-pressing for foodstuff, pharmacy, daily chemical industry, pesticide and cosmetics.

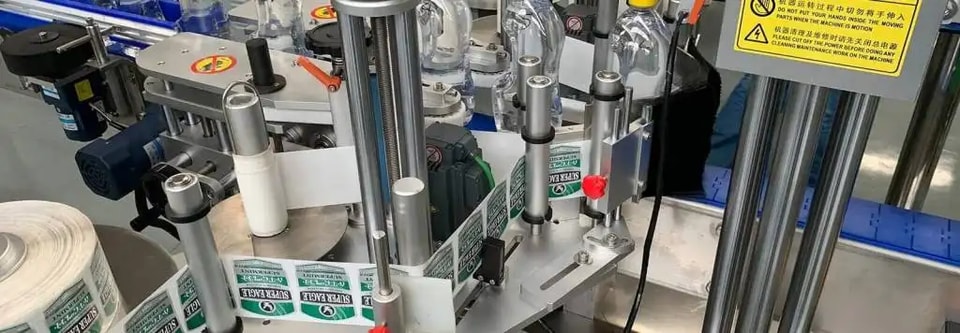

Labeling
We have various labeling machine system as option, like wet glue label, adhesive sticker label, PVC shrink label, bopp hot glue label and so on.
Packing
As customer request and market demand, we provide the better solution for the final product package, like film shrink pacakge, film with half tray and carton box package.
Need a Customized Edible Oil Production Line?
Tell us your product viscosity, bottle volume, required capacity, filling heads, capping method, labeling format and factory layout. Our engineering team will provide a suitable edible oil filling line solution for your project.
