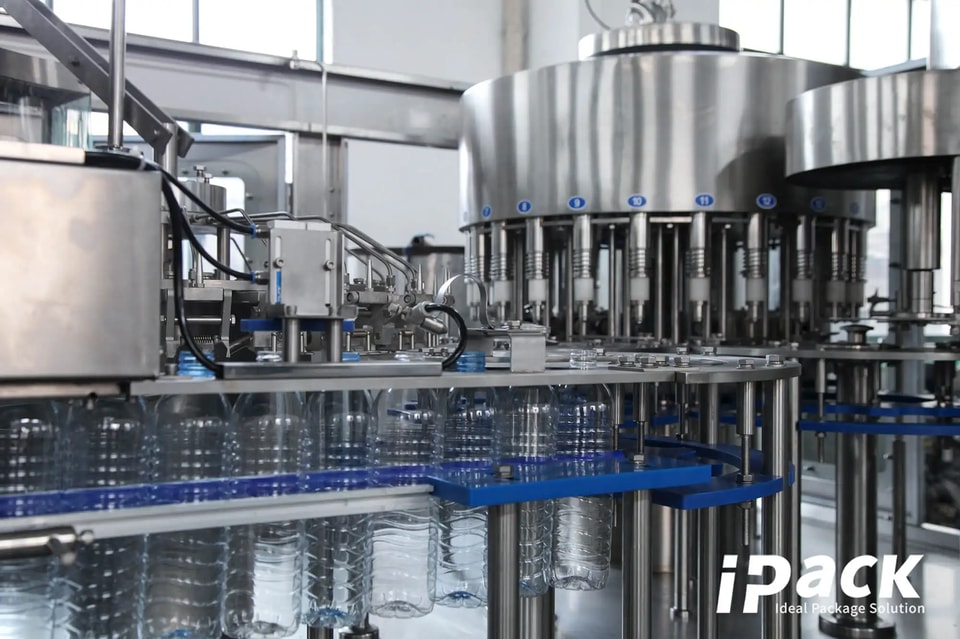

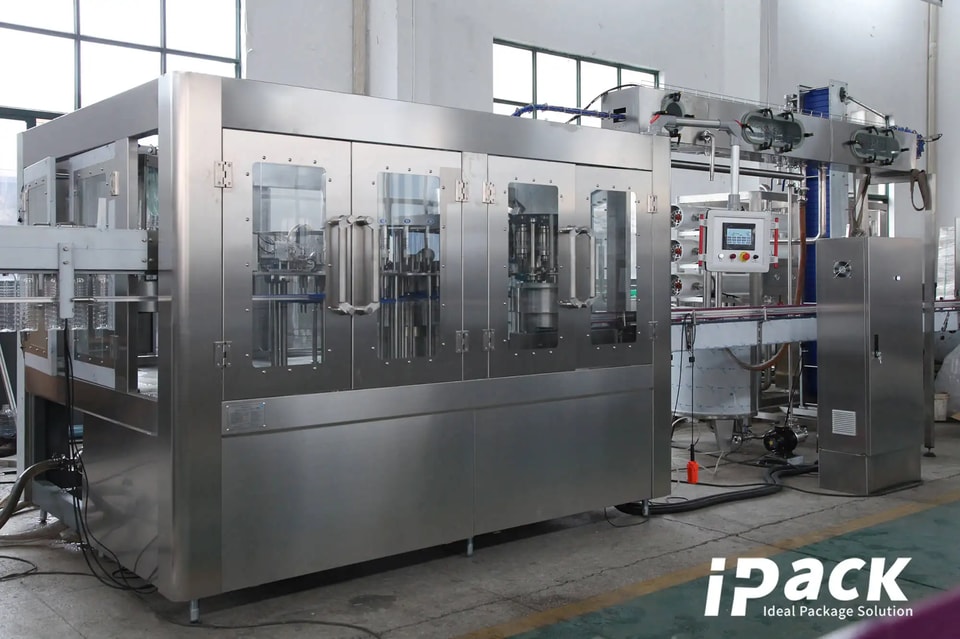

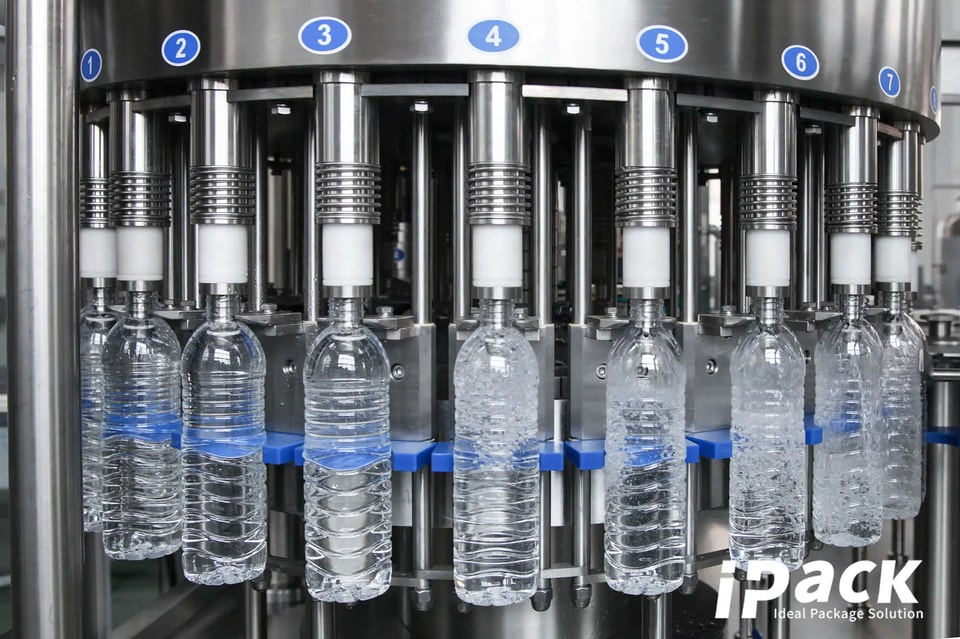

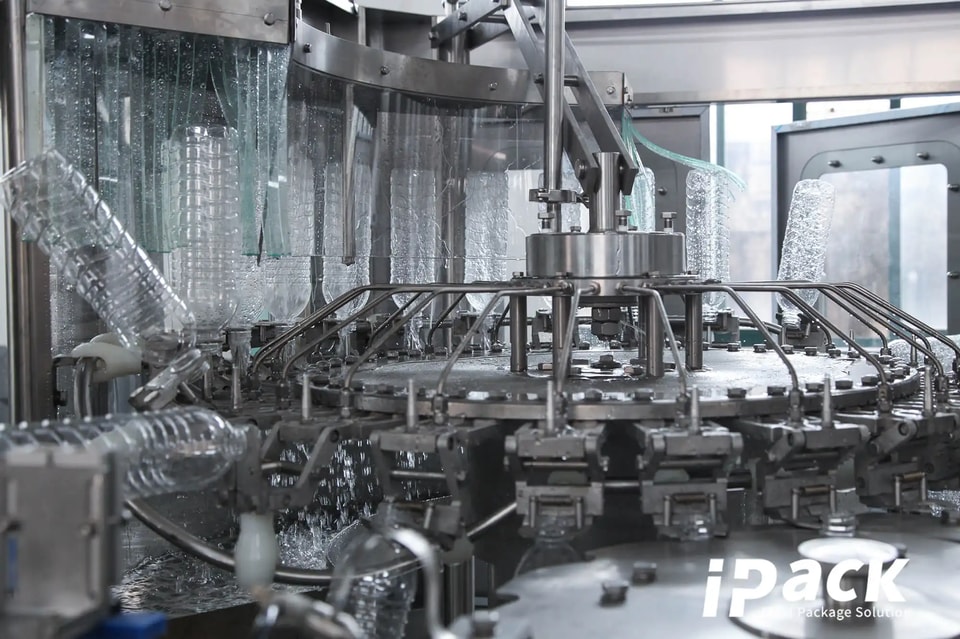

10000BPH Automatic Mineral Water Filling Machine
- Model: XGF24-24-8
- Capacity: 10,000–12,000 bottles per hour for 500ml PET bottles
- Bottle Size Range: 200ml–2000ml
- Function: 3-in-1 washing, filling and capping
- Application: bottled pure drinking water and mineral water production lines
Technical Parameters
| Model | XGF24-24-8 |
|---|---|
| Capacity: (for 500ml) | 10000~12000 bottles/hour |
| Suitable bottle shapes | PET Circular or Square |
| Bottle diameter | 50~115mm |
| Bottle height | 120~320mm |
| Compressor air | 0.3~0.7Mpa |
| Washing medium | Pure Water |
| Rinsing pressure | 0.06~0.2Mpa |
| Application | Pure Drinking Water |
| Main motor power | 3kW |
| Overall dimensions | 2800*2330*2700mm |
| Weight | 6000kg |
Product Overview
This Machine mainly used in the water filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology. The famous brand programeed controller (PLC) is adopted to control the machine runs automatically. It is a ideal perferred equipment for beverage makers.
