Complete Canned Drink Production Line for Can Filling Plant
From can depalletizing, rinsing, filling and sealing to leakage checking, nitrogen dosing, pasteurization, drying and final packaging, we provide complete canned drink production line solutions.
Complete Pop Can and Tin Can Filling Solution
We provide the complete pop cans / tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package and film package system, which is widely used for the beverage, beer, juice, sauce industry and so on.
Canned Drink Production Line Data Information
Choose a suitable model according to your required can filling capacity, can size, filling temperature, automation level and investment plan.
| Model | GD12-1 | GD18-6 | GD24-6 | GD32-8 | GD40-8 |
|---|---|---|---|---|---|
| Capacity (500ml/can/h) | 2000-3000 | 5000-6000 | 7000-8000 | 9000-10000 | 11000-13000 |
| Can Size | 150ml to 500ml | 150ml to 500ml | 150ml to 500ml | 150ml to 500ml | 150ml to 500ml |
| Filling Temperature | 0-4℃ | 0-4℃ | 0-4℃ | 0-4℃ | 0-4℃ |
| Rated Power | 5.5KW | 6.5KW | 7.8KW | 8.5KW | 9.2KW |
| Overall Size | 2800*1600*2000mm | 3000*1700*2000mm | 3200*1800*2000mm | 3500*1950*2000mm | 3800*2150*2000mm |
| Weight | 3000kgs | 4000kgs | 4800kgs | 5200kgs | 6200kgs |
The above data is for reference only. Special can size can be customized. Final configuration depends on product type, can size, filling temperature, packaging format, plant layout and automation level.

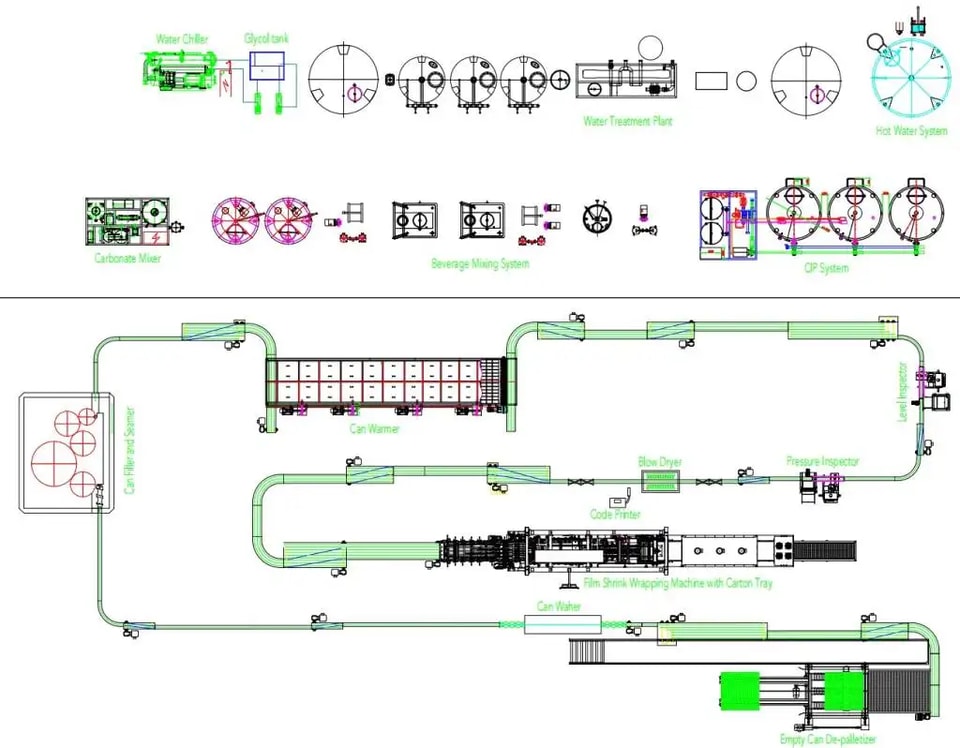

Typical Canned Drink Production Line Layout
This layout shows a typical canned drink production line arrangement, including can depalletizing, can rinsing, filling and sealing, leakage checking, nitrogen dosing, pasteurizing, blow drying and final packaging systems. The final layout can be customized according to can type, factory space and production capacity.
Key Equipment of the Complete Canned Drink Production Line

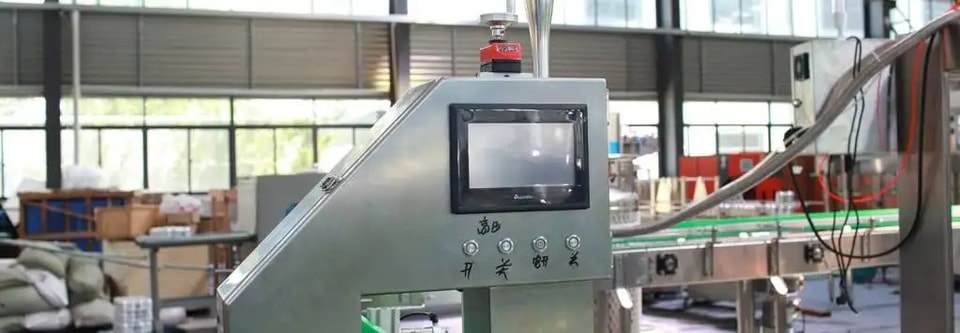

Filling
The machine is suitable for filling and sealing beverage or brewage industry, it have such features as rapid filling and sealing speed, consistent height from the liquid level in the can to the can mouth after filling, stable machine operation, good sealing quality, beautiful and decent appearance, convenient use and maintenance, touch screen operation, frequency conversion speed adjustment, etc. It is the most ideal filling and sealing device for beverage plants and brew houses.

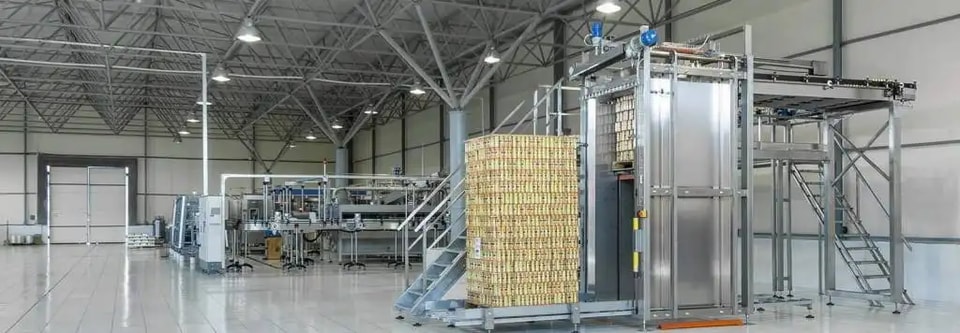

Can Depalletizer
It can replace the manual can arrangement, increase production efficiency, it is an indispensable ideal device for middle and large sized beverage plants, plc programmable computer automatic controller, photo-electricity switch, over travel-limit switch and pneumatic control,etc, use the famous brand from germany and japan and taiwan.
Can Line Auxiliary

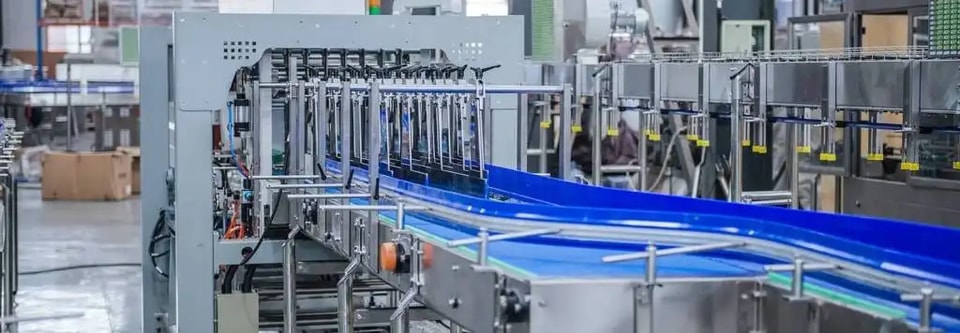

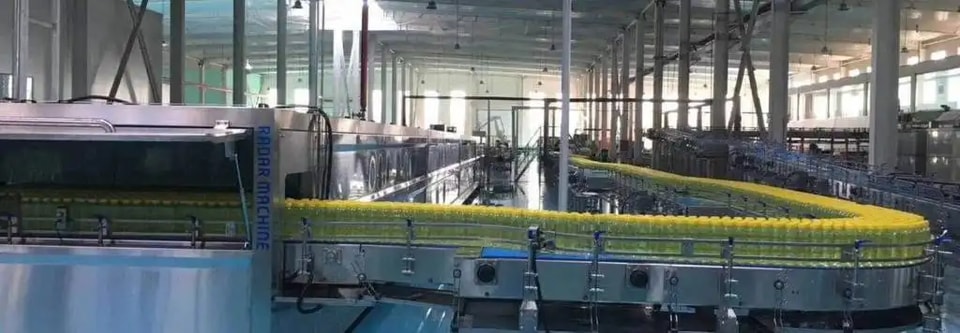

Including Liquid level check, vacuum leakage test, liquid nitrogen dosing machine.

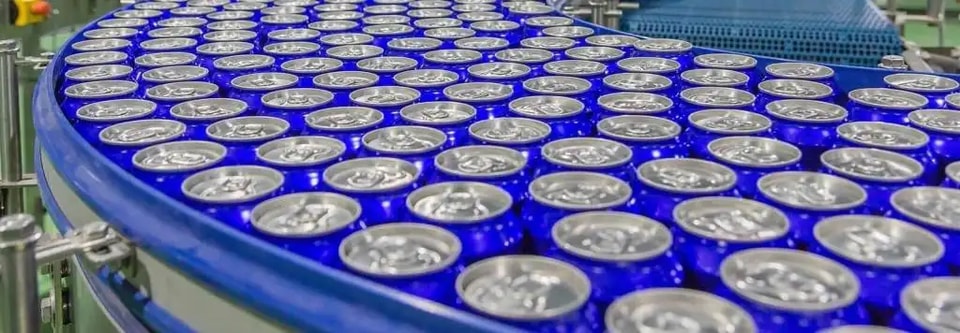

Pasteurization Tunnel
With various zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine are specially designed for the pasteurizer tunnel, can be used for the carbonated drink, juice, beer, food product.
Packing
As customer request and market demand, we provide the better solution for the final product package.
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, adhesive stick label, wet glue label, and packing machine have the film shrink machine and carton box package.
Conveyor
We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.
Need a Customized Canned Drink Production Line?
Tell us your product type, can size, required capacity, filling temperature, packaging format and factory layout. Our engineering team will provide a suitable canned drink production line solution for your project.
