Complete Juice Production Line for Juice Filling Plant
From water treatment, syrup melting and juice mixing to sterilization, hot filling, labeling, packing and palletizing, we provide complete turnkey solutions for juice filling plants.
Complete Juice Production Line Supply
We supply complete juice production line for the juice filling plant, including water treatment system, syrup melting system, juice mixing system, sterilizer system, washing filling capping machine, pasteurizer tunnel, automatic labeling machine, automatic packing machine and automatic palletizer system.
Juice Production Line Data Information
Choose a suitable model according to your required juice filling capacity, available factory area, automation level and investment plan.
| Model | RXGF14-12-5 | RXGF16-16-5 | RXGF24-24-8 | RXGF32-32-10 | RXGF40-40-12 |
|---|---|---|---|---|---|
| Capacity | 4000-4500bph | 5000-6000bph | 8000-10000bph | 11000-13000bph | 13000-15000bph |
| Occupy Area | 300m² | 400m² | 800m² | 1200m² | 1500m² |
| Power Consumption | 150KW | 350KW | 500KW | 800KW | 1000KW |
| Number of Labors | 10 | 10 | 8 | 10 | 10 |
| Roughly Budget | $100,000-140,000 | $120,000-250,000 | $300,000-500,000 | $500,000-800,000 | $800,000-1,200,000 |
The above data is for reference only. Final configuration depends on juice type, bottle size, filling temperature, sterilization process, plant layout, automation level and local installation requirements.

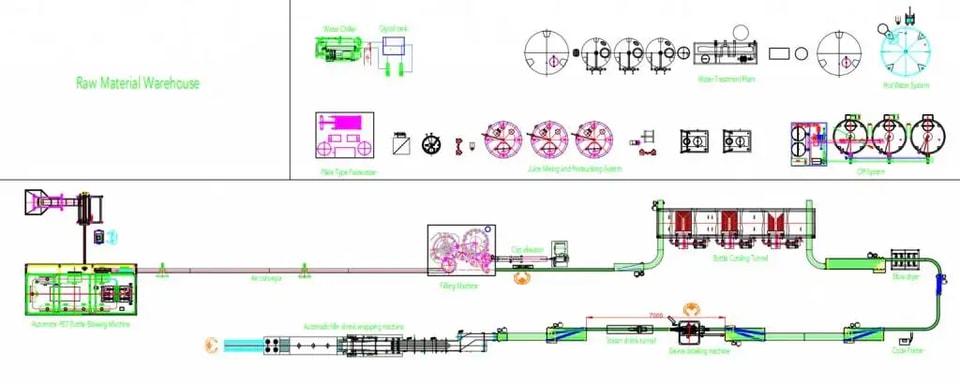

Typical Juice Production Line Layout
This layout shows a typical juice production line arrangement, including water treatment, syrup melting, juice mixing, sterilization, filling, pasteurizing, labeling, packing and conveying systems. The final layout can be customized according to factory space and production capacity.
Key Equipment of the Complete Juice Production Line

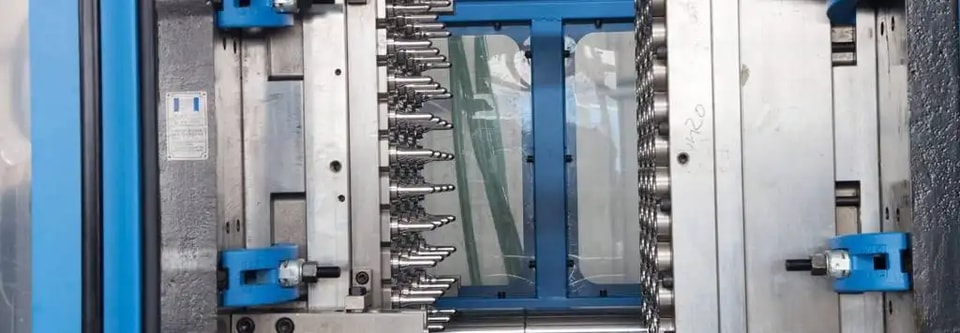

Injection Molding
For the PET Preform and Cap production, Adopting Europe technology, hydraulic unit adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English language to use. Close-loop PID temperature control with the advantage of high precision.

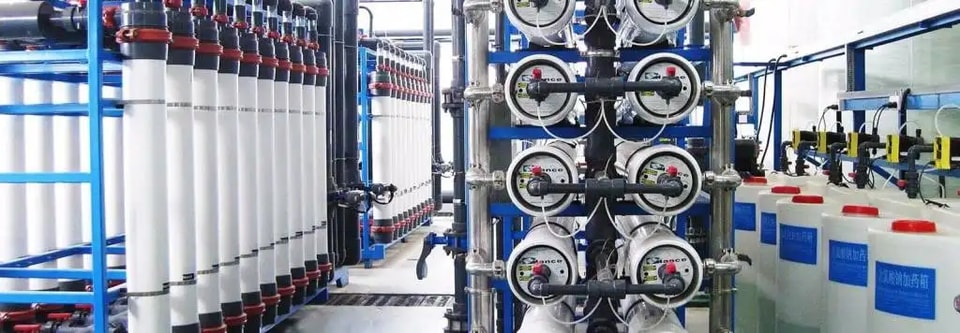

Water Treatment
According to customer’s water source analysis report and the final water standard required, we will suggest customer to choose the suitable water treatment plants.

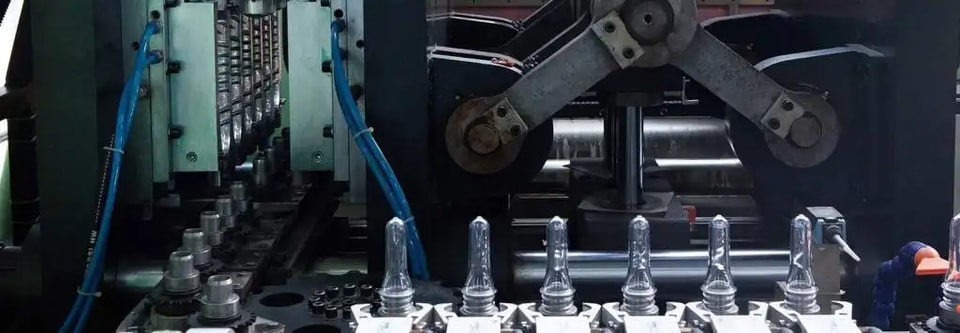

Bottle Blowing
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. It is necessary for the water filling production line, 330ml-2L water filling machine line.

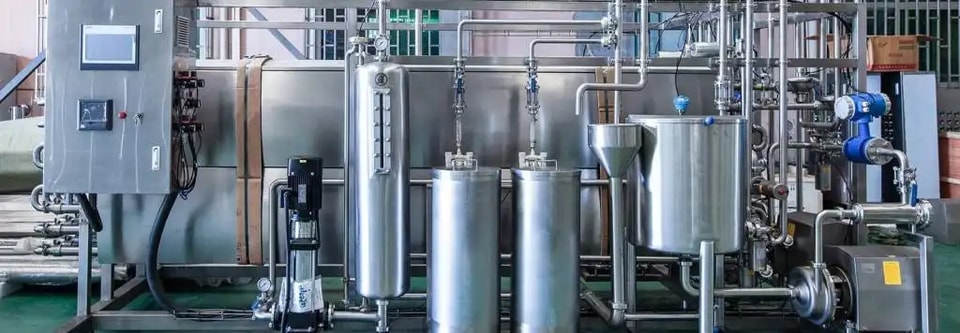

Juice Processing
Complete juice processing system with reasonable mixing and sterilization technology, not only can be suitable for common products, but also can satisfy special requirements of customers, for example juice, milk, cream or high viscosity products containing fiber and large pulp granules.

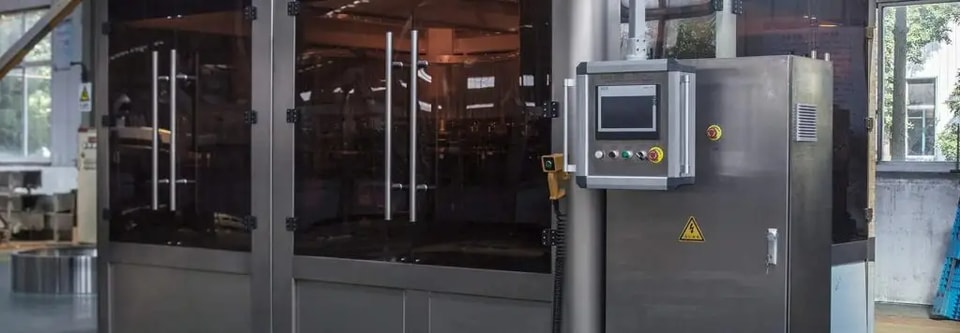

Juice Filling
This water bottling machine line is mainly used for filling fruit juice. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro pressure filling operation of the new type is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

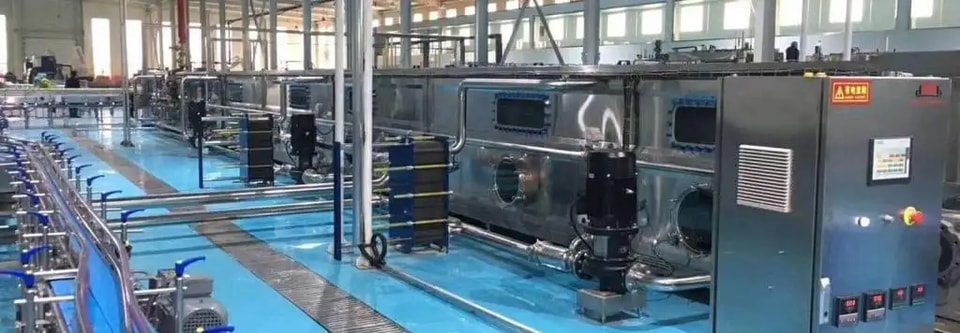

Pasteurization Tunnel
Used for after packing sterilizer, with different zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine can applicable to all types non-carbonated material such as tea, juice, sauce.

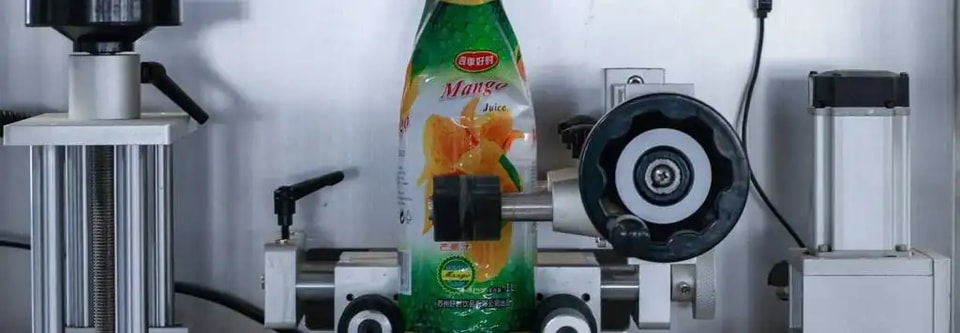

PVC/OPP Labeling
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, adhesive stick label, wet glue label.

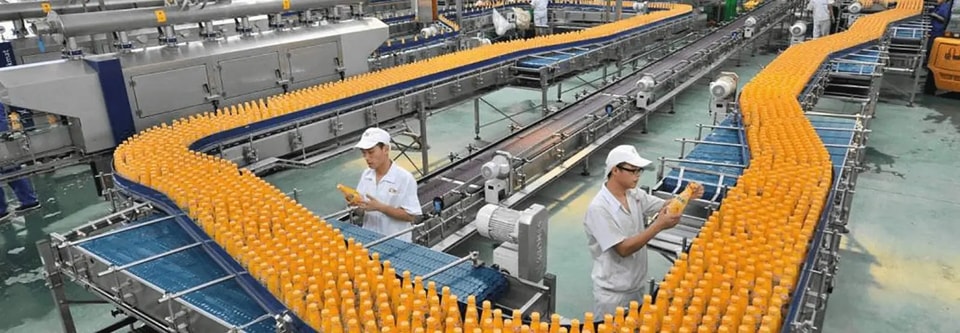

Conveyor
We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.

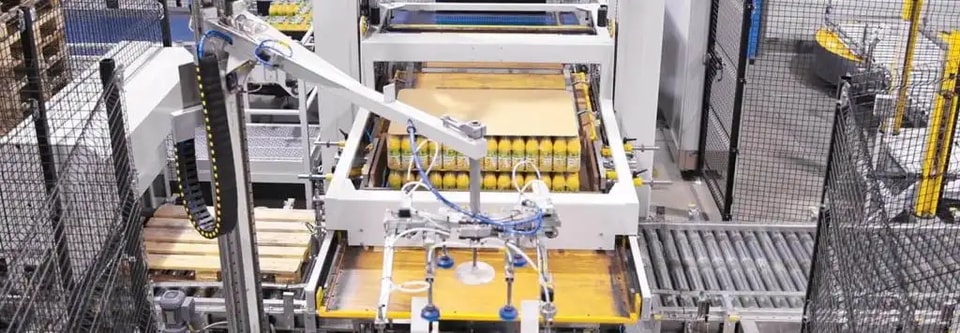

Packing
We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.
Need a Customized Juice Production Line?
Tell us your juice type, bottle size, required capacity, factory layout and budget range. Our engineering team will provide a suitable juice production line solution for your project.
