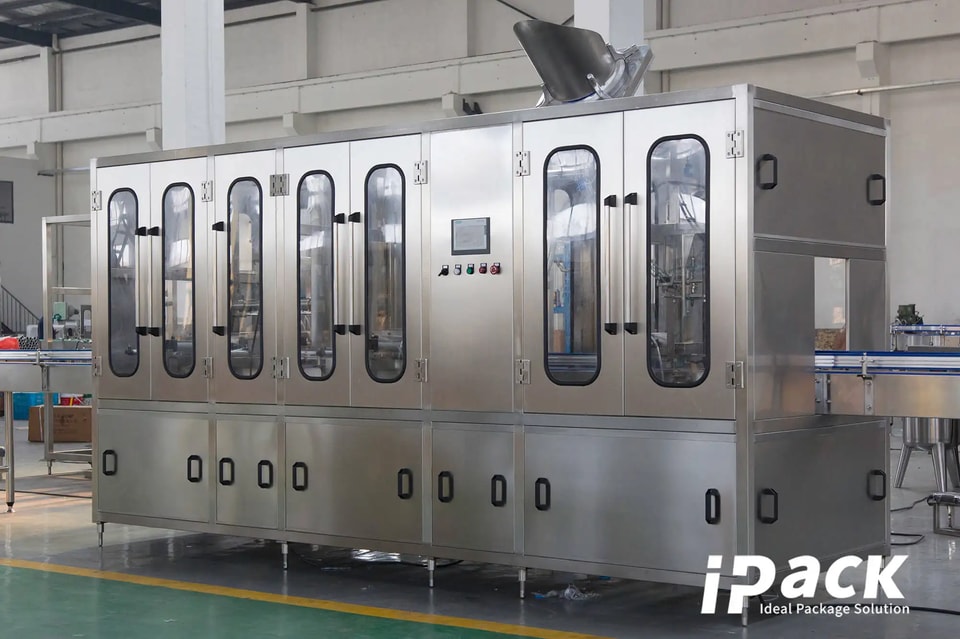

Linear Type Automatic 5L-10L Big Bottle 3 in 1 Water Filling Machine
- Capacity : 400~1000 Bottles Per Hour
- Bottle Sizes: 3L ~ 10L
- Function: Washing Filling Capping Machine
Description
This machine specially for 3L-10L big bottle drinking water. It integrates bottle washing, filling and capping into one unit. All parts of this machine is made of high quality stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life.
Technical Parameter
| Model | LGF4-4-1 | LGF6-6-1 | LGF8-8-1 |
|---|---|---|---|
| Capacity: (5L) | 400 -600BPH | 600~800BPH | 800~1000BPH |

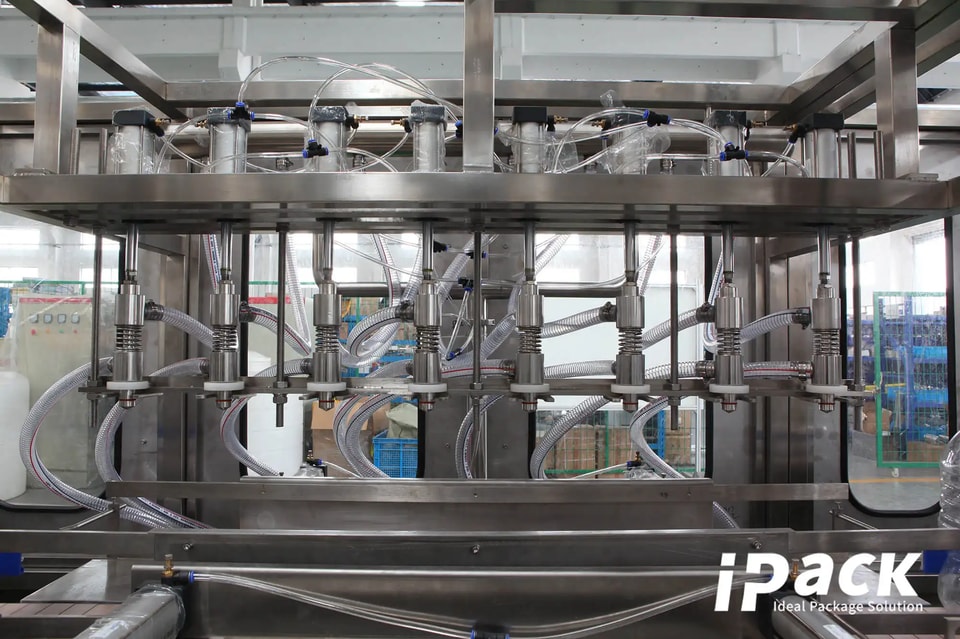

| Filling heads | 4 pcs | 6 pcs | 8 pcs |
| Suitable bottle | 5L & 10L | ||
| Barrel size | Dia270 x 490 mm | ||
| Compressor air | 0.4 ~0.6 Mpa | ||
| Filling type | Normal Pressure | ||
| Application | Drinking water / Mineral water / Pure water | ||
| Total power | 2.5kw | 4.5kw | 5.5kw |
| Overall dimensions | 3.4X1.2m | 4.4X1.2m | 5.4X1.2m |
| Height | 2m | 2m | 2m |
| Weight | 1500kg | 2000kg | 3000kg |
