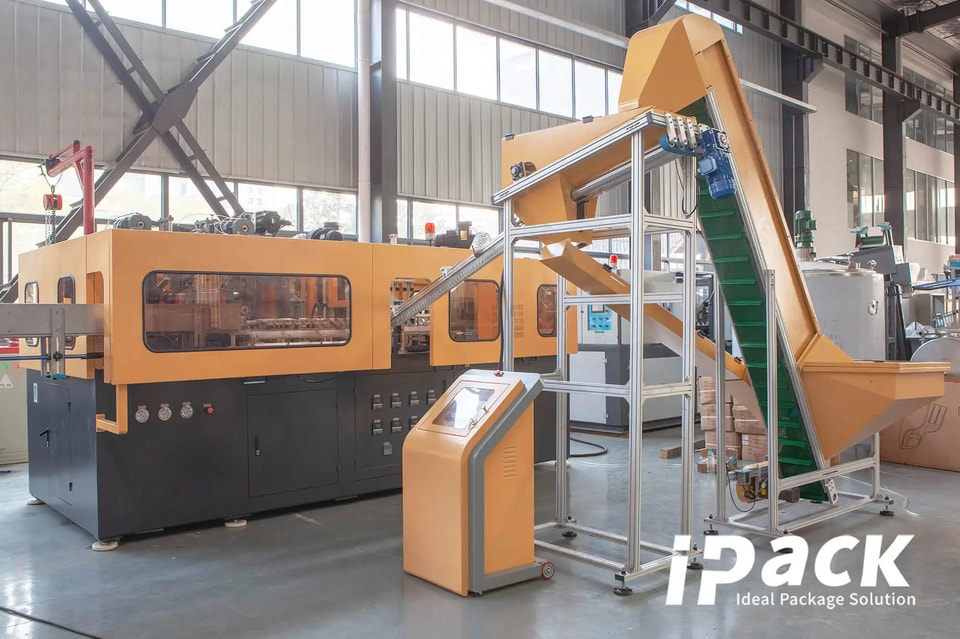

Automatic Full Electric Servo Type PET Bottle Blowing Machine
- Model: ABM-6E
- Capacity: 9000-12000BPH
- Application: PET bottle blow molding
Description
The two-step Pet stretch blow moulding machine which are applicable in a wide range of PET packaging practice, such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc. With more than 10 years experience in developing and producing blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.
Technical Parameter
| Model | ABM-4EL | ABM-6E | ABM-6EL | ABM-9E |
|---|---|---|---|---|
| Cavities quantity | 4cavities | 6cavities | 6cavites | 9cavities |
| Max Voulume: | 2000ml(B) | 700ml | 2000ml | 700ml |
| Output capacity (500ml) | 6000bph | 9000bph | 8000bph | 12000bph |
| Max. bottle diameter | 120mm | 70mm | 120mm | 70mm |
| Max. neck height under neck | <330mm | <250mm | <330mm | <250mm |
| Neck diameter range | 18mm~38mm | |||
| Application | PET stretch blowing | |||
| Total power | 96kw | 70kw | 110kw | 100kw |
| Main machine size | 4.5×2.3×2.6m | 4.5×2.3×2.6m | 5.8×2.6×2.6m | 5.8×2.6×2.6m |
| Preform elevator size | 2.8×2.8×3.2m | 2.8×2.8×3.2m | 4.5×3.5×3.5m | 4.5×3.5×3.5m |
| Weight | 7000kg | 7500kg | 9500kg | 11000kg |
