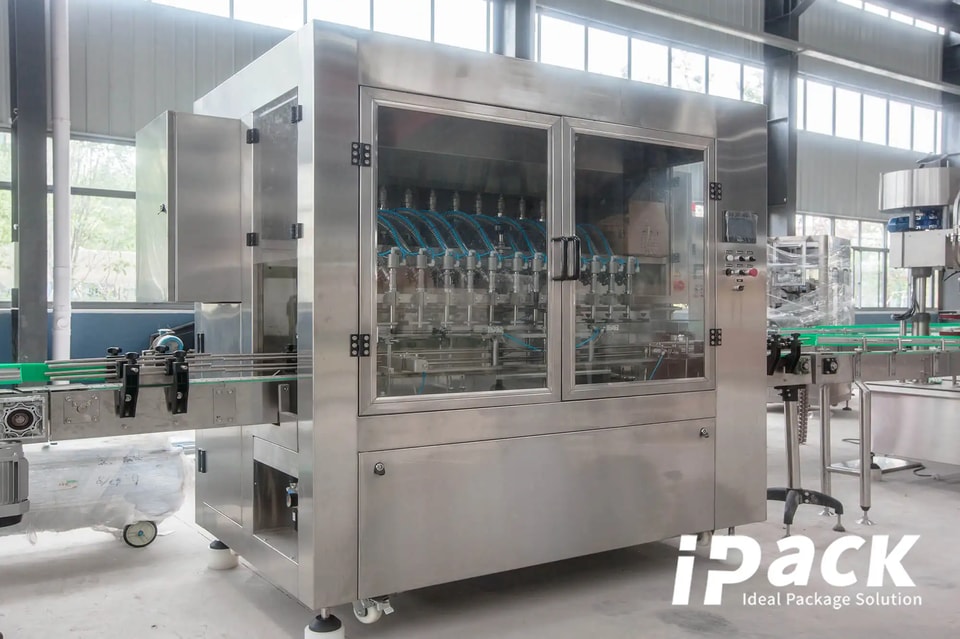

Automatic Edible Oil Filling & Capping Machine
- Model: SNYG-10
- Capacity : 2000-8000 liters per hour
- Function: Oil filling
- Bottle Sizes: 500ml to 3L
Description
This type filling machine is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry. Using the straight filling way, may be used in the different vessels, needn’t add any parts.
Technical Parameter
| Model | SNYG-4 | SNYG-6 | SNYG-8 | SNYG-10 | SNYG-12 | SNYG-16 |
|---|---|---|---|---|---|---|
| Capacity: (1L) | 1000bph | 1500bph | 2000bph | 2500bph | 3000bph | 4000bph |
| Filling heads | 4heads | 6heads | 8heads | 10heads | 12heads | 16heads |
| Max bottle sizes | 5L | 5L | 5L | 3L | 3L | 2L |
| Filling Precision | +/- 0.5% | |||||
| Working power | 220VAC | |||||
| Air pressure | 6~7 kg/㎡ | |||||
| Air consumption | 1m³/min | |||||
| Total power | 3.2kw | 3.5kw | 4.2kw | 5.2kw | 6kw | 7.5kw |
| Height | 2.3m | |||||
| Weight | 1500kg | 1750kg | 1900kg | 2200kg | 2500kg | 2800kg |
