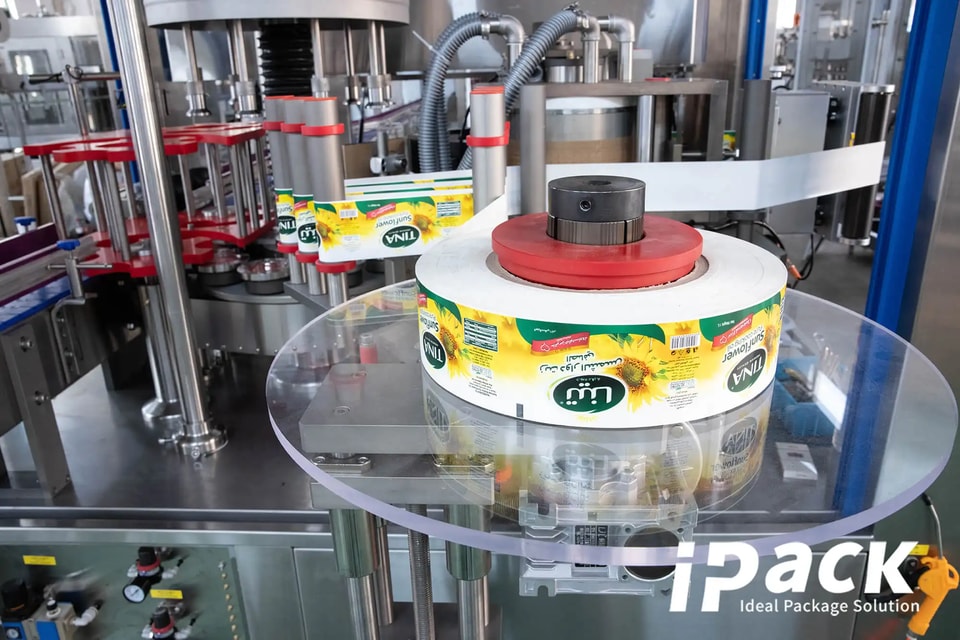

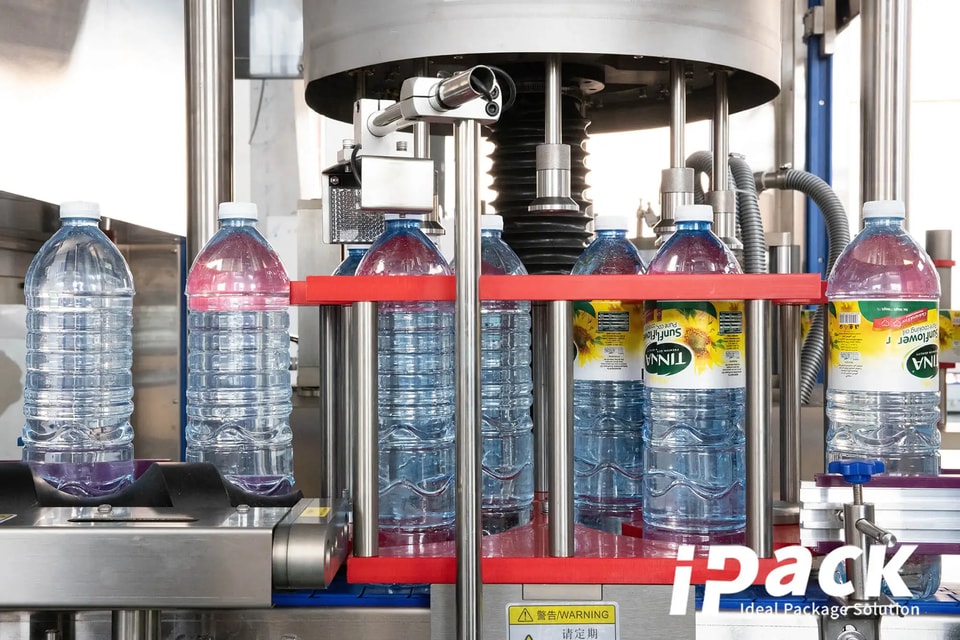

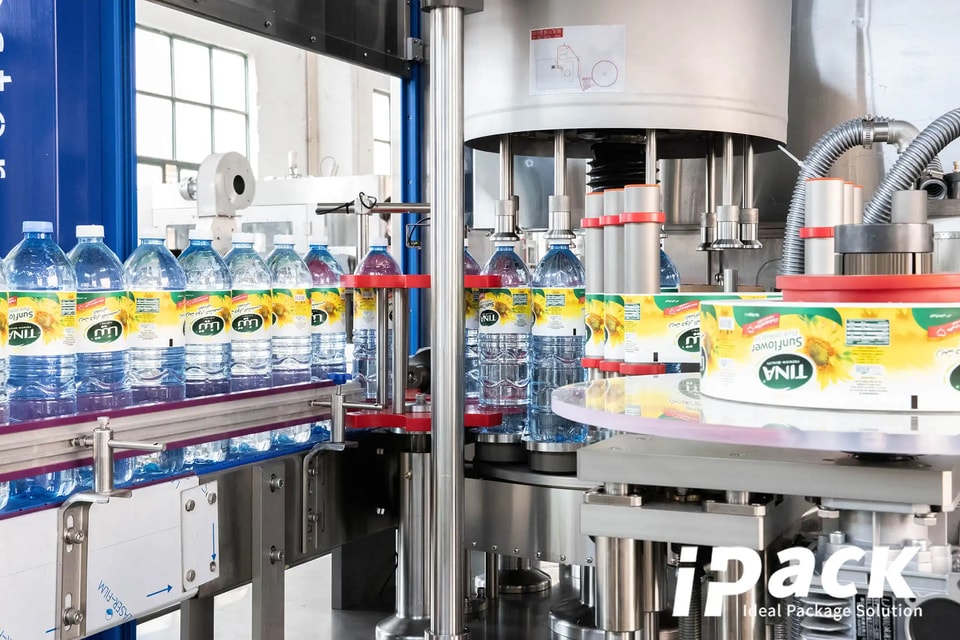

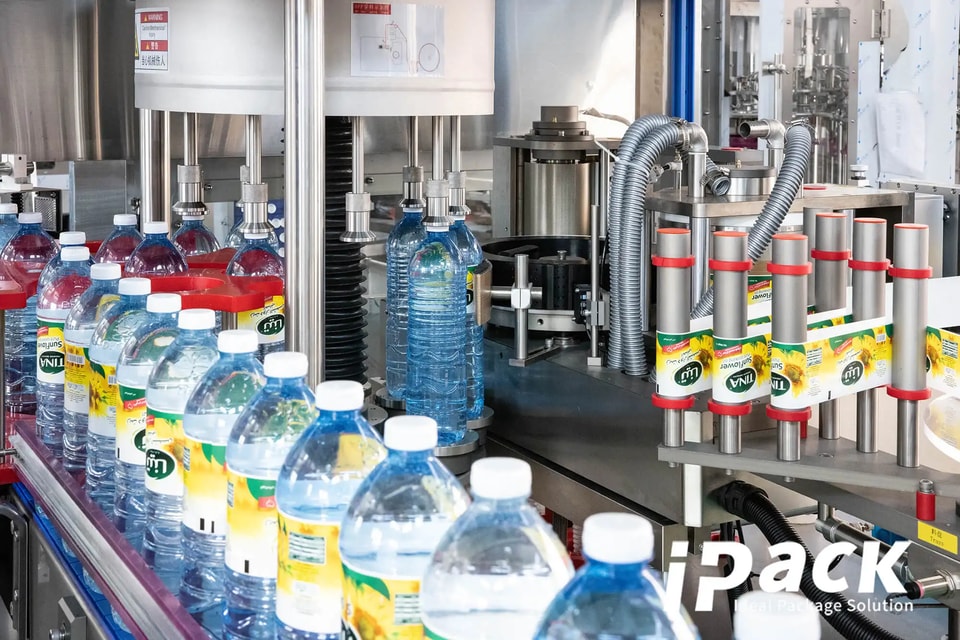

Automatic Wrap Around Hot Melt Glue OPP Labeling Machine
- Model: HLG
- Max Capacity: 6000-24000 Bottles Per Hour
- Bottle Sizes: 100ml ~2L
- Function: Hot melt glue labeling machine
Downloads
Hot melt glue labeling machine is widely used for different material of container. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
| Model | HGL-09 | HGL-12 | HGL-15 | HGL-18 | HGL-18H |
|---|---|---|---|---|---|
| Label Heads | 9Heads | 12Heads | 15Heads | 18Heads | 18Heads |
| Capacity | 10000bph | 12000bph | 15000bph | 18000bph | 24000bph |
| Labeling precision | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm |
| Max label height | 200mm(standard width,can be adjusted)) | 200mm(standard width,can be adjusted)) | 200mm(standard width,can be adjusted)) | 200mm(standard width,can be adjusted)) | 200mm(standard width,can be adjusted)) |
| Max label diameter | 600mm | 600mm | 600mm | 600mm | 600mm |
| Paper core hot melt | 152mm | 152mm | 152mm | 152mm | 152mm |
| Weight | 2000kgs | 2300kgs | 2500kgs | 2800kgs | 3000kgs |
